APT series (iron bottom plastic surface)

■The main technical parameters ■Transparent door, made of ABS material left-open 180°. ■Rated operating voltage:230/400V AC ■Short-time withstand current: 4kA ■Maximum operating current: 125A ■Materials 口Panel is made of ABS material. 口(Bottom of high quality cold-rolled steel (0.8, 1.0, 1.2, 1.5mmoptional), the surface through electrostatic spray, anti-corrosion effect ■Protection class: IP30

products detial


APT series (iron bottom plastic surface)

■The main technical parameters

■Transparent door, made of ABS material left-open 180°.

■Rated operating voltage:230/400V AC

■Short-time withstand current: 4kA

■Maximum operating current: 125A

■Materials

口Panel is made of ABS material.

口(Bottom of high quality cold-rolled steel (0.8, 1.0, 1.2, 1.5mmoptional), the surface through electrostatic spray, anti-corrosion effect

■Protection class: IP30

■Installation and wiring:

口Knockout holes up for easy inlet and outlet terminals

口Bottom rail between the box and the spaced rails can lift,adjustment accurate installation

口Zero line, ground terminals, optimizing the pitch and aperture carrying more current, wiring easier

■meet the criteria: GB72513-2006



Product Name

 Model/ Specifications

Rows

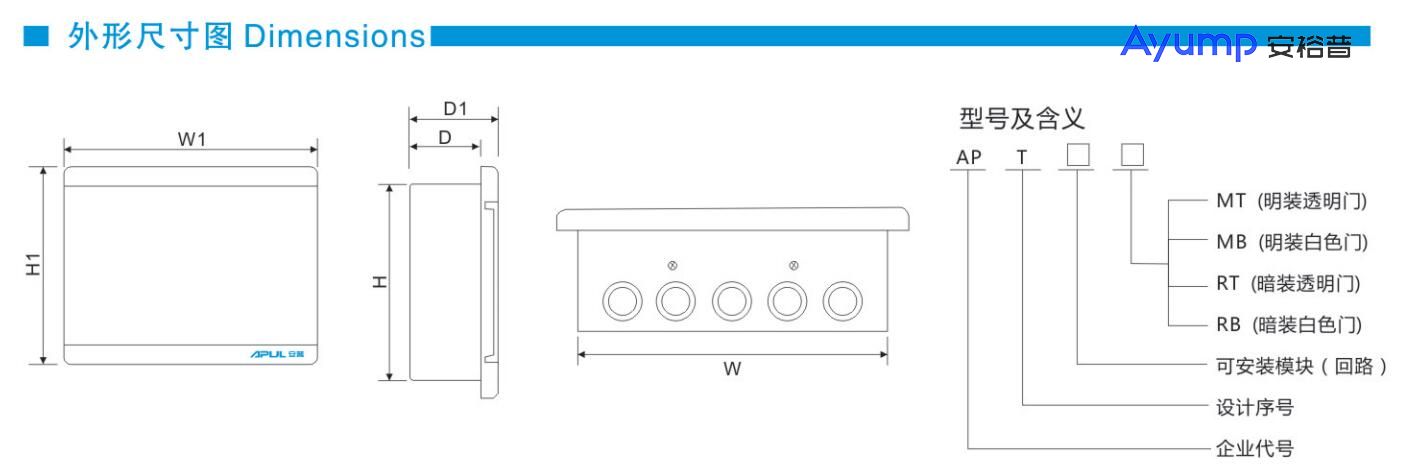

((WxHxD)MM bottom box

(WXHXD)MM Dimensions



End section Size(mm)

Unit

Number pkgs

APT

APT-8RT

1

222*200*90

251*230*115

7*9

Only

20

APT-12RT

1

289*220*90

318*250*115

7*9

Only

12

APT-16RT

1

362*220*90

390*250*115

7*9

Only

10

APT-20RT

1

435*220*90

463*250*115

7*9

Only

8

APT-24RT

2

291*371*90

318*400*117

7*9

Only

8

APT-36RT

3

289*536*90

318*558*115

7*9

Only

6

APT-40RT

2

435*471*90

463*500*115

7*9

Only

6

APT-38RT

3

362*536*90

390*570*117

7*9

Only

6

APT-60RT

3

435*721*90

465*750*115

7*9

Only

1

Note: The median refers to a multiple of 18mm and a width of 18mm

Product Name

 Model/ Specifications

Rows

((WxHxD)MM bottom box

(WXHXD)MM Dimensions



End section Size(mm)

Unit

Number pkgs

APT   Open installation

APT-8MT

1

222*200*90

251*250*110

7*9

Only

20

APT-12MT

1

289*220*90

318*250*110

7*9

Only

12

APT-16MT

1

362*220*90

390*250*110

7*9

Only

10

APT-20MT

1

435*220*90

463*250*110

7*9

Only

8

APT-24MT

2

291*371*90

318*400*110

7*9

Only

8

APT-36MT

3

289*536*90

390*501*110

7*9

Only

6

APT-40MT

2

435*471*90

463*501*110

7*9

Only

6

APT-38MT

3

362*536*90

390*725*110

7*9

Only

6

APT-60MT

3

435*721*90

463*725*110

7*9

Only

1



Note: The median refers to a multiple of 18mm and a width of 18mm
