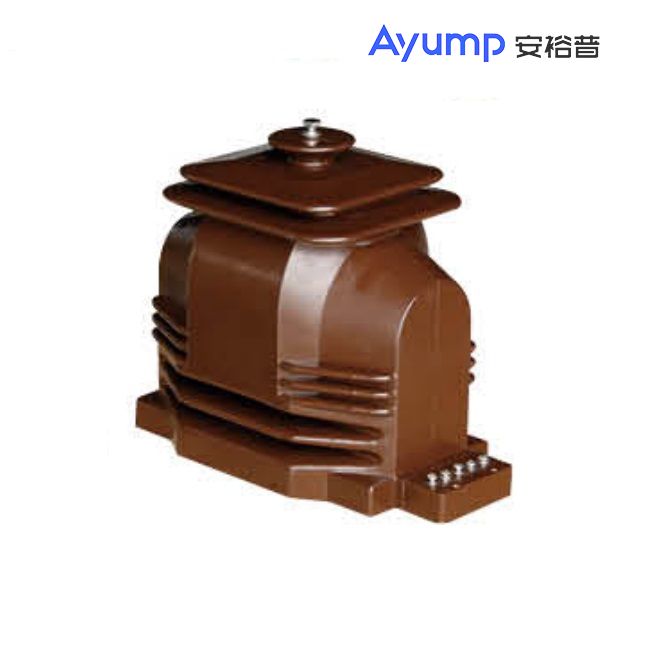

JDZX9-24 Indoor High-Voltage Voltage Transformer

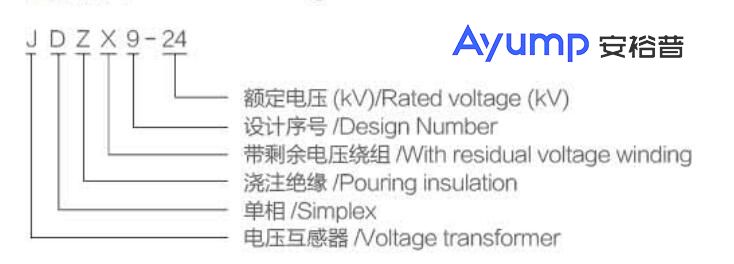

Model meaning
Technical Parameters
◆Power factor of load: COSφ=0.8 (hysteresis);
◆Rated frequency: 50 or 60Hz;
◆Pollution level: Grade II ;
◆Ambient temperature: the lowest temperature is -5℃ , the highest temperature is 40℃ , and the daily average temperature is not more than 30℃ ;
◆Altitude:≤1500 meters;
◆Product standard: GB20840.1 GB20840.3.
Technical Data Sheet
Model |
Rated primary voltage(V) |
Rated secondary voltage(v) | Auxiliary winding voltage(v) | Secondary winding limit output(VA) |
Limit output(VA) |
Rated insulation level(kV) | ||
0.2 | 0.5 | 3(6)P | ||||||
JDZX9-15 | 15000/√3
| 100/√3 | 100/3 | 30 | 50 | 100 | 500 | 18/55/105 |
100/√3 /100/√3 | 30 | 20 | ||||||
JDZX9-20 | 20000/√3
| 100/√3 | 100/3 | 30 | 50 | 100 | 22/60/120 | |
100/√3 /100/√3 | 30 | 50 | ||||||
JDZX9-24 | 24000/√3 | 100/√3/100/√3 | 100/3 | 30 | 50 | 100 | 24/65/125 | |
Shape and installation dimensions(mm)
