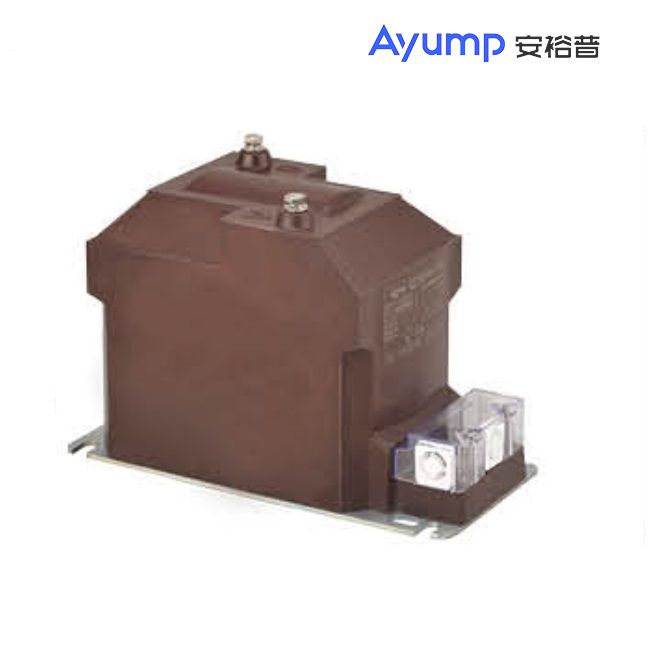

JDZ10-10(RZL-10) Indoor High-Voltage Voltage Transformer

JDZ10-10(RZL-10) Indoor High-Voltage Voltage Transformer

products detial


JDZ10-10(RZL-10) Indoor High-Voltage Voltage Transformer

JDZ10-10(RZL-10)户内高压电压互感器

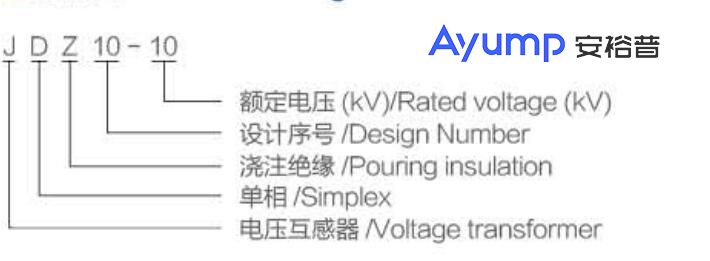

Model meaning

 JDZ10-10(RZL-10)户内高压电压互感器2

Technical Parameters

◆Power factor of load: COSφ=0.8 (hysteresis);

◆Rated frequency: 50 or 60Hz;

◆Pollution level: Grade II ;

◆Ambient temperature: the lowest temperature is -5℃ , the highest temperature is 40℃ , and the daily average temperature is not more than 30℃ ;

◆Altitude:≤1000 meters(A);1500 meters(B);

◆Product standard: GB20840.1   GB20840.3.



Technical Data Sheet

Model

 Rated voltage(V)

 Secondary winding rated output(VA)

 Secondary winding

limit output(VA)

 Rated insulation

leve(kv)

 Primary winding

 Secondary winding

0.2

0.5

JDZ10-3A

3000

100

15

30

300

3.6/25/40

JDZ10-6A

6000

100

15

30

300

7.2/32/60

220

500

JDZ10-10A

10000

100

15

25

300

12/42/75

220

500

JDZ10-6B

6000

100

20

50

300

7.2/32/60

220

500

100/220

500

100/100

10

15

300/300

JDZ10-10B

10000

100

25

50

300

12/42/75

220

30

50

500-1000

100/220

500

100/100

25

50

800/800

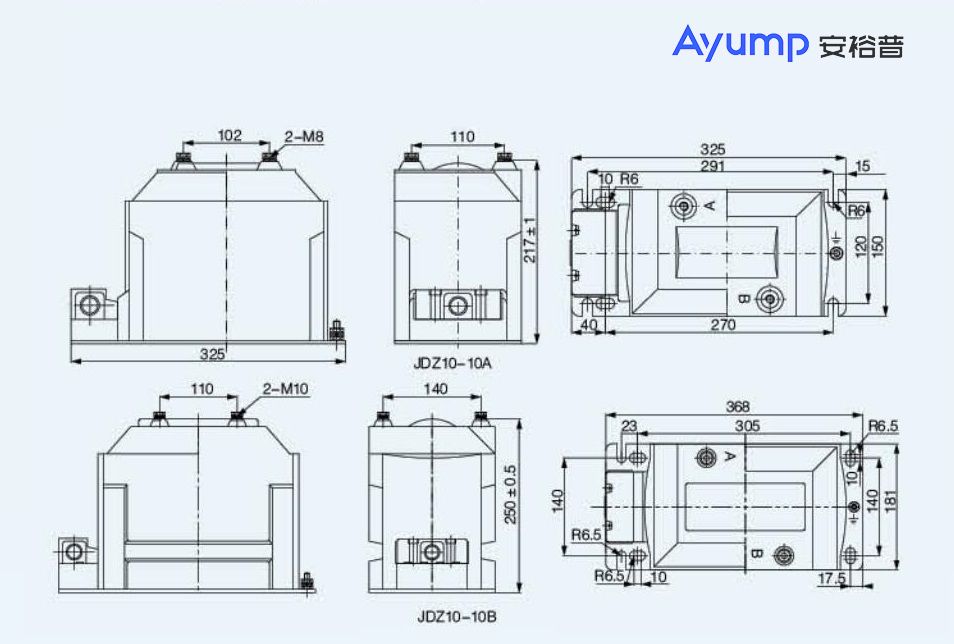

Shape and installation dimensions(mm)
