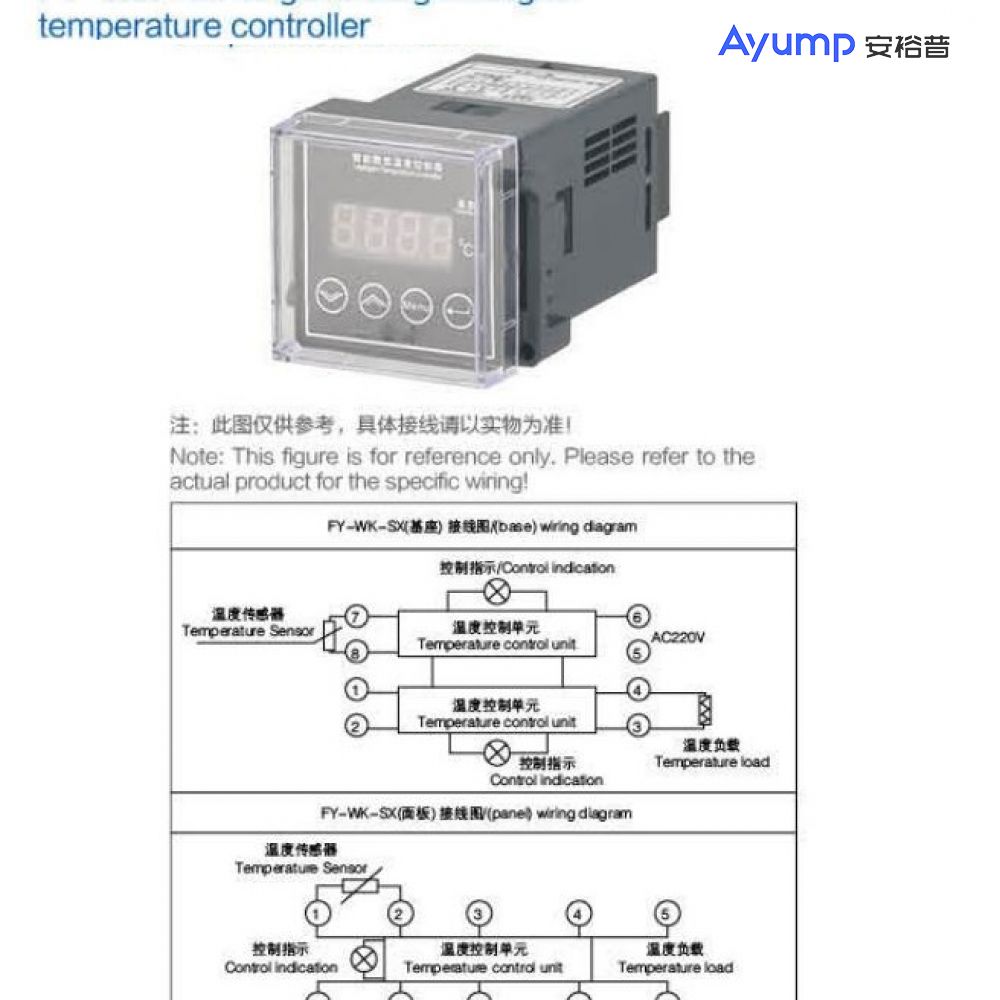

FY-WK-SX single itelligent digital temperature controller

Temperature and humidity controller model meaning

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY-WK-SX single itelligent digital temperature controller

The main function

FY-WK- SX has one digital display temperature control and one output, which can monitor the temperature of the measured environment in real time and make the ambient temperature index meet the requirements.

The set value or measured value of the temperature is displayed numerically; the user sets the temperature control value by pressing the button. The user sets the local control value by the button. The product integrates the heating and heating type and the fan cooling type.

Technical characteristics

◆Power supply voltage: AC220V 50Hz;

◆Measurement control range: -50-99℃ Accuracy±1℃ ;

◆Parameter setting: upper limit: -49-99℃ ; lower limit: -50-98℃;

◆Sensor error correction: -50-99℃ ;

◆Display mode: three LED digital tube display. 1 decimal place;

◆Response speed: typicalvalue≤5S;

◆Load output capacity: AC220V/7A (resistive load) one active output;

◆Volume: 48 x 48 x 78mm.
